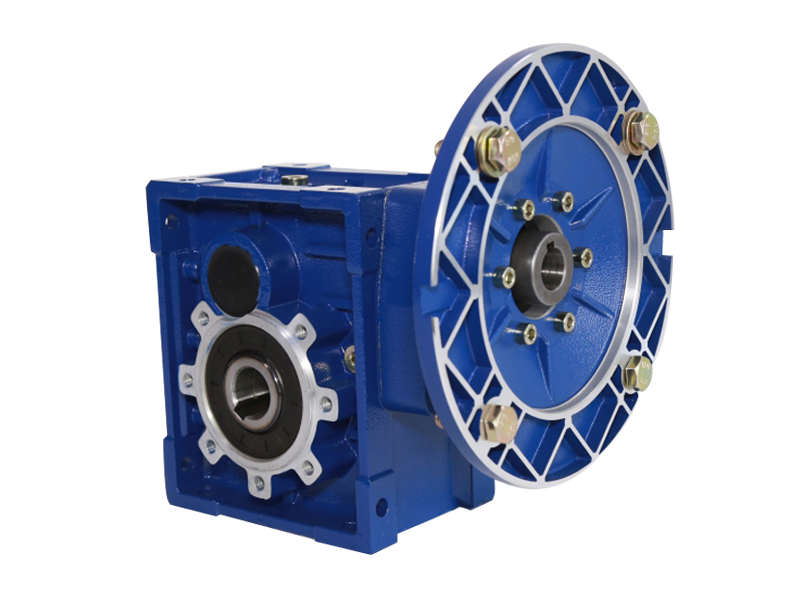

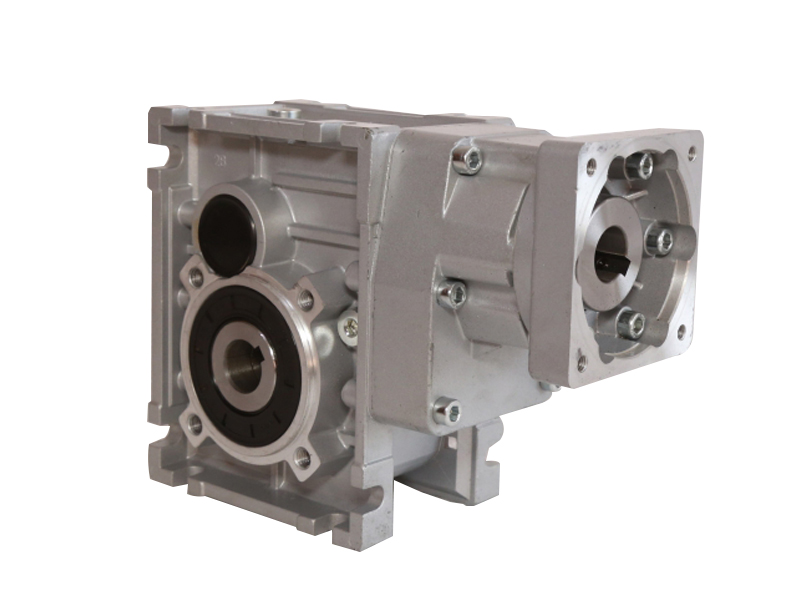

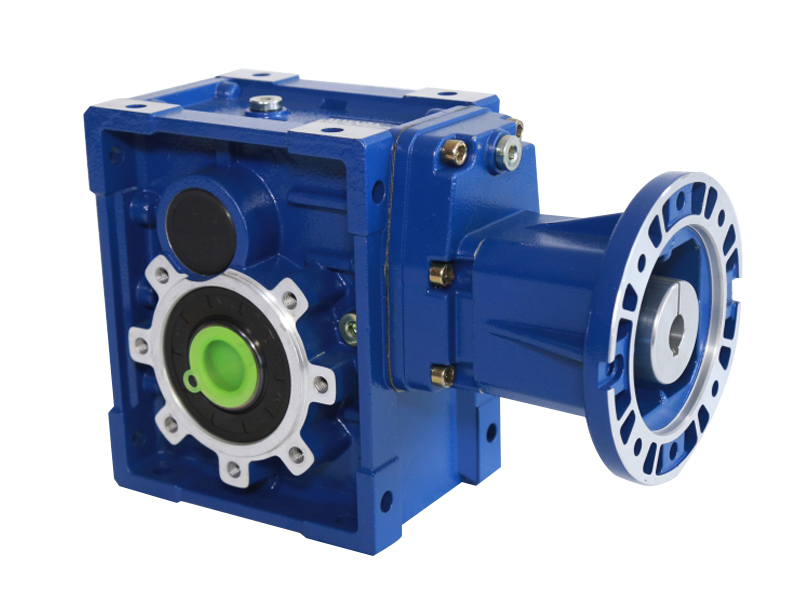

SKM Hypoid Gear Speed Reducers

  • Hypoid Gear Speed Reducers
  • Hypoid Gear Speed Reducers
  • Hypoid Gear Speed Reducers

    • One of the features of the hypoid gear speed reducers is that the shafts intersect at two mutually parallel planes, providing greater torque in the same construction space than an ordinary helical gear reducer.

    We produce reducers in strict accordance with the ISO9001 standard. All the raw materials are strictly screened, and spare parts like the bearings and oil seals are from internationally renowned manufacturers to ensure the service life and working efficiency of the gearbox. We have our own production factory and there is a large stock of products that you can buy directly.

    Specifications

    Model: SKM28~SKM58
    Ratio: 7.5~300
    Torque: 6~570Nm
    Power: 0.12KW~4.0KW
    Motor: 2 pole, 4 pole, 6 pole
    Mounting position: omnidirectional
    SpecificationsSpeed [r/min] Torque [Nm]Ratio
    0.12KW, 5.7-181RPM, 5.9-224Nm 0.12KW 5.7 184 244.29
    0.18KW, 4.5-181RPM, 8.9-423Nm 0.18KW 9.6 165 291.79
    0.25KW, 5.8-116RPM, 19-490Nm 0.25KW 19.1 115 146.67
    0.37KW, 6-181RPM, 18-559Nm 0.37KW 23.3 140 120.34
    0.55KW, 9.3-184RPM, 27-522Nm 0.55KW 38 129 74.62
    0.75KW, 11.6-188RPM, 36-567Nm 0.75KW 57 117 48.86
    1.1KW, 18.5-368RPM, 27-529Nm 1.1KW 70 141 40.09
    1.5KW, 28.2-368RPM, 37-467Nm 1.5KW 116 116 24.07
    2.2KW, 35-368RPM, 1.5-566Nm 2.2KW 139 143 20.21
    3KW, 47-374RPM, 72-568Nm 3KW 70 386 40.13
    4KW, 71-374RPM, 96-515Nm 4KW 111 323 25.19
    Features
    • Omnidirectional mounting
    • Housing made of high-quality aluminum alloy, die-casting, light weight, good rust resistance
    • Low back clearance
    • Smooth transmission and low noise
    • Customized products available

    Video

    Video Show

    We produce speed reducers in strict accordance with ISO9001 standard to provide our customers with high quality gearboxes at competitive prices. Our gearboxes are equipped with accessories from international famous brands, such as oil seal from SKF brand, lubricant from Shell brand, and bearing from NSK brand. The housing and gear are produced in our company under stringent quality control. All our products are available in large stocks, and we can also provide you with customized reducer solutions, please feel confident to contact us.
