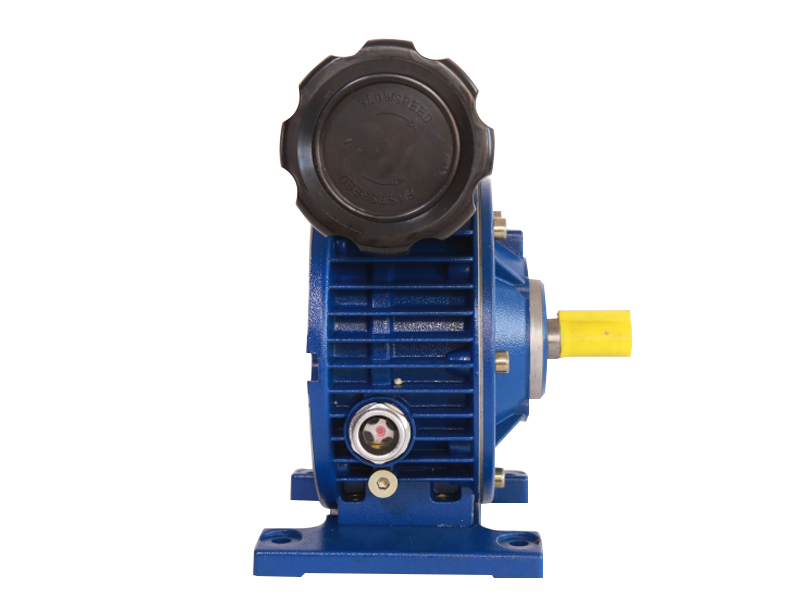

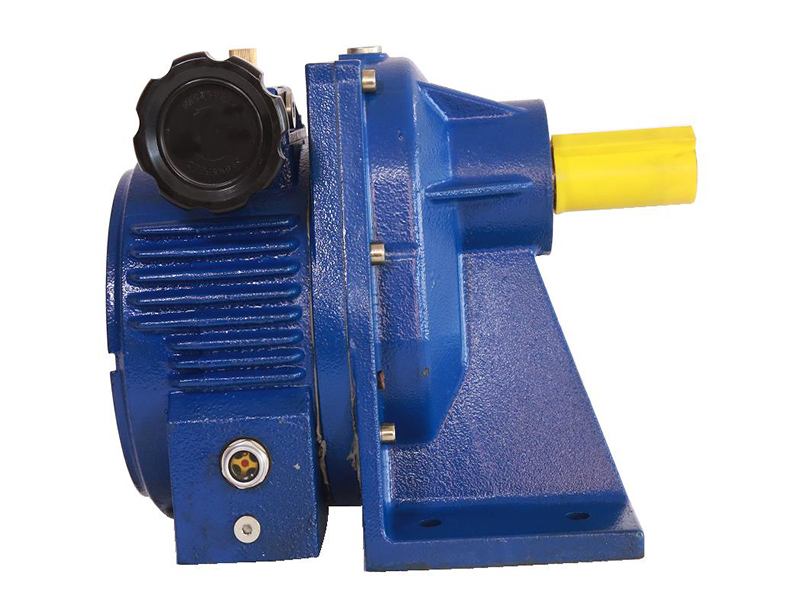

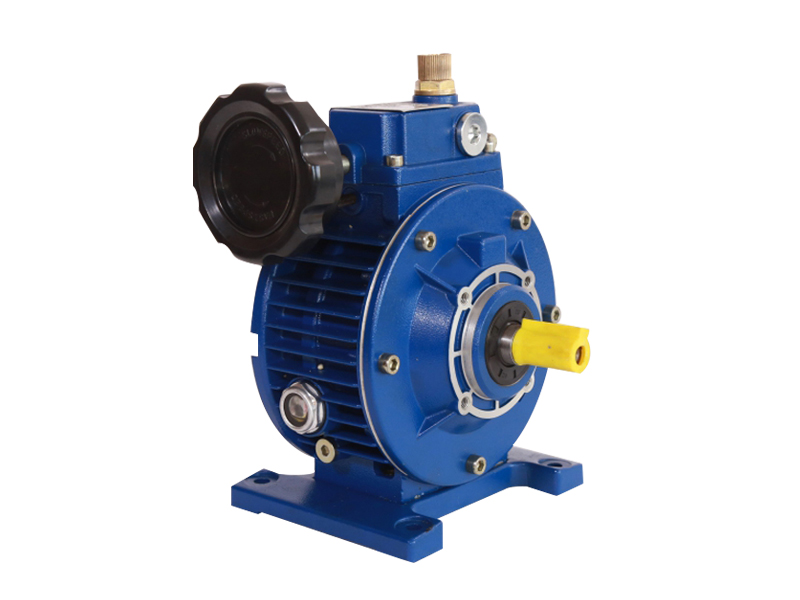

UDL Planetary Gearbox Gearless Transmission
Gearless transmission can be cooperatively used with various speed reducers to achieve low-speed stepless speed change. It can be extensively used in various automated production lines, conveyor lines and assembly lines that require speed regulation in fields of food, ceramics, packaging, chemical industry, pharmacy, etc.
To improve customer experience, we produce gearless transmission system in strict accordance with ISO9001 standards, and carry out a series of quality tests before delivery. You can find the gearless transmission mechanism in our product list or tell our professional team directly about your needs, and we will customize the system that suits you best.
Specifications
Ratio: 1.4~7
Torque: max. 1650NM equipped with RV speed reducer
Motor power: 0.18KW~7.5KW
Features
- High transmission precision, which is up to 0.5~1 revolution;
- Stable performance and low noise.
- Wide speed range, the output speed ratio can be arbitrarily changed between 1:1.4 and 1:7. If used with a 4-pole motor, the output transmission speed is between 200-1000 RPM.
- Convenient speed adjustment, continuous operation, and can run in positive and negative directions.
| Model | Power [KW] | Ratio | Speed [r/min] | Torque [Nm] |
| UDL0.18 | 0.18 | 1.6 〜8.2 | 880〜170 | 1.5〜3 |
| UDL0.37 | 0.37 | 1.4 〜7 | 1000〜200 | 3〜6 |
| UDL0.55 | 0.55 | 1.4 〜7 | 1000〜200 | 4〜8 |
| UDL0.75 | 0.75 | 1.4 〜7 | 1000〜200 | 6〜12 |
| UD1.1 | 1.10 | 1.4 〜7 | 1000〜200 | 9〜18 |
| UD1.5 | 1.50 | 1.4 〜7 | 1000〜200 | 12〜24 |
| UD2.2 | 2.20 | 1.4 〜7 | 1000〜200 | 18〜36 |
| UD3.0 | 3.00 | 1.4 〜7 | 1000〜200 | 24〜48 |
| UD4.0 | 4.00 | 1.4 〜7 | 1000〜200 | 32〜64 |
| UD5.5 | 5.5 | 1.4 〜7 | 1000〜200 | 45〜90 |
| UD7.5 | 7.5 | 1.4 〜7 | 1000〜200 | 59〜118 |
Note: UDL refers to the out cover made of aluminium alloy, UD represents the out cover made of cast iron.
Video
We produce speed reducers in strict accordance with ISO9001 standard to provide our customers with high quality gearboxes at competitive prices. Our gearboxes are equipped with accessories from international famous brands, such as oil seal from SKF brand, lubricant from Shell brand, and bearing from NSK brand. The housing and gear are produced in our company under stringent quality control. All our products are available in large stocks, and we can also provide you with customized reducer solutions, please feel confident to contact us.
