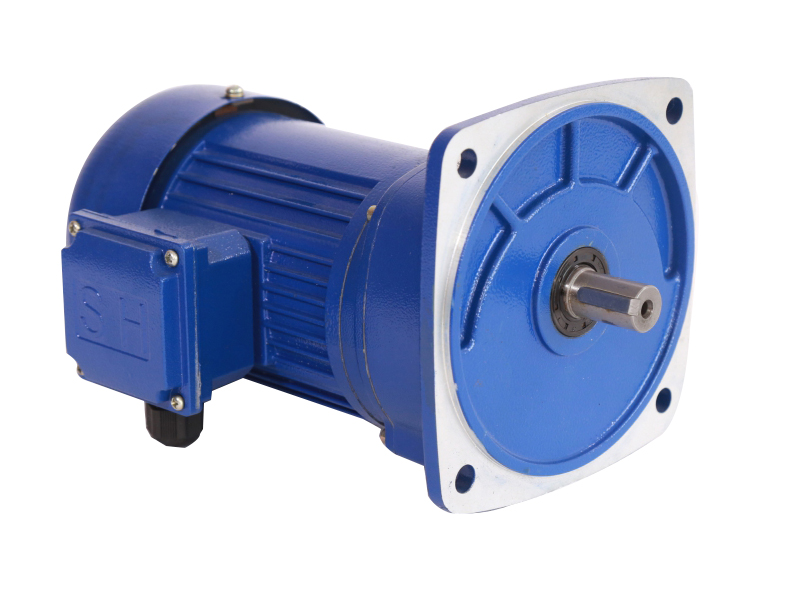

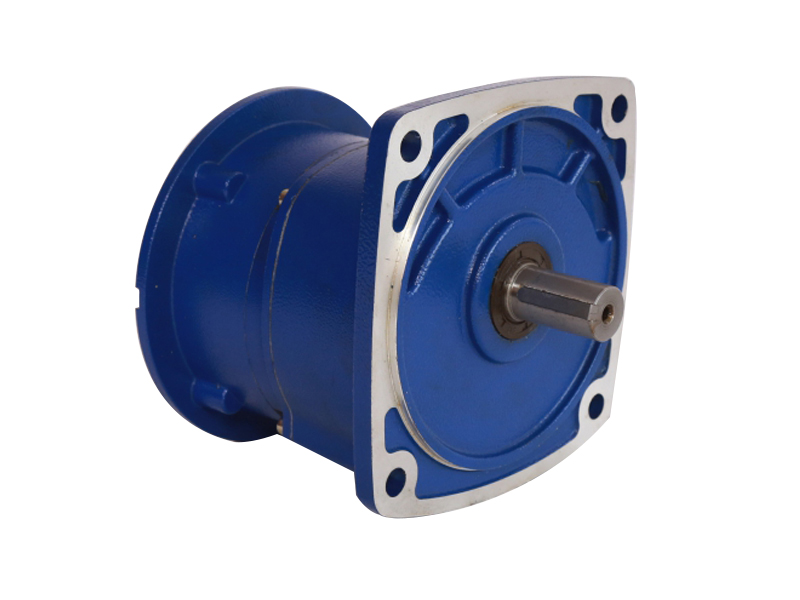

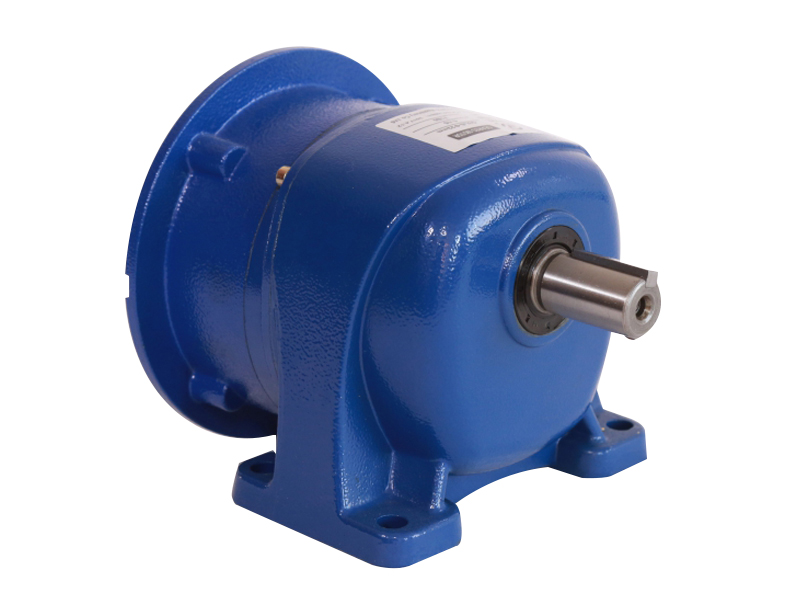

G3 Helical Gear Speed Reducer

  • G3 Helical Gear Speed Reducer
  • G3 Helical Gear Speed Reducer
  • G3 Helical Gear Speed Reducer
  • G3 helical gear speed reducer has an extremely wide speed range, and is compact, powerful and economical, which is the perfect gearbox solution for every industry.

    As a leading manufacturer of reducers, we adhere to quality first. Equipped with housing made of high-performance aluminum alloy and high-strength gear, all gearboxes must pass a series of rigorous quality inspections before shipment.

    Whether you need a foot-mounted, a shaft-mounted, or a flanged-mounted helical gear reducer, you can find the gearbox you need directly in our product list. If you have difficulty selecting the right helical speed reducer, please contact our technical engineers directly for the most suitable gearbox solution.

    Specifications

    Motor power: 0.1KW~2.2KW
    Ratio: 5~200
    Motor: 4 pole, 6 pole, single-phase motor
    Mounting method: all

    SpecificationsOutput shaftSpeed [r/min] Torque [Nm]
    0.1KW, 7-282RPM, 3.24-125.4Nm 0.1KW Φ18 282 3.24
    0.2KW, 7-282RPM, 6.5-250.7Nm 0.2KW Φ18 282 6.5
    0.4KW, 7-288RPM, 12.9-461.8Nm 0.4KW Φ22 288 12.9
    0.75KW, 7-278RPM, 24.6-764Nm 0.75KW Φ28 278 24.6
    1.5KW, 7-280RPM, 48.2-1230Nm 1.5KW Φ32 280 48.2
    2.2KW, 14-272RPM, 67-1230Nm 2.2KW Φ40 272 67
    Features
    • The housing is made of die-cast anodized aluminum alloy, so it is lightweight and sturdy.
    • The gear is made of carburized and grinded 20CrMnTi, with good wear resistance and no noise.
    • The transmission gear of hard tooth surface is of small deformation and high precision.
    • There are two mounting types available: vertical and horizontal.

    Video

    Video Show

    We produce speed reducers in strict accordance with ISO9001 standard to provide our customers with high quality gearboxes at competitive prices. Our gearboxes are equipped with accessories from international famous brands, such as oil seal from SKF brand, lubricant from Shell brand, and bearing from NSK brand. The housing and gear are produced in our company under stringent quality control. All our products are available in large stocks, and we can also provide you with customized reducer solutions, please feel confident to contact us.
